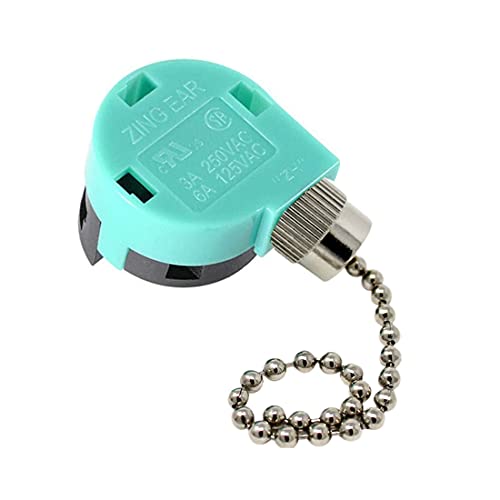

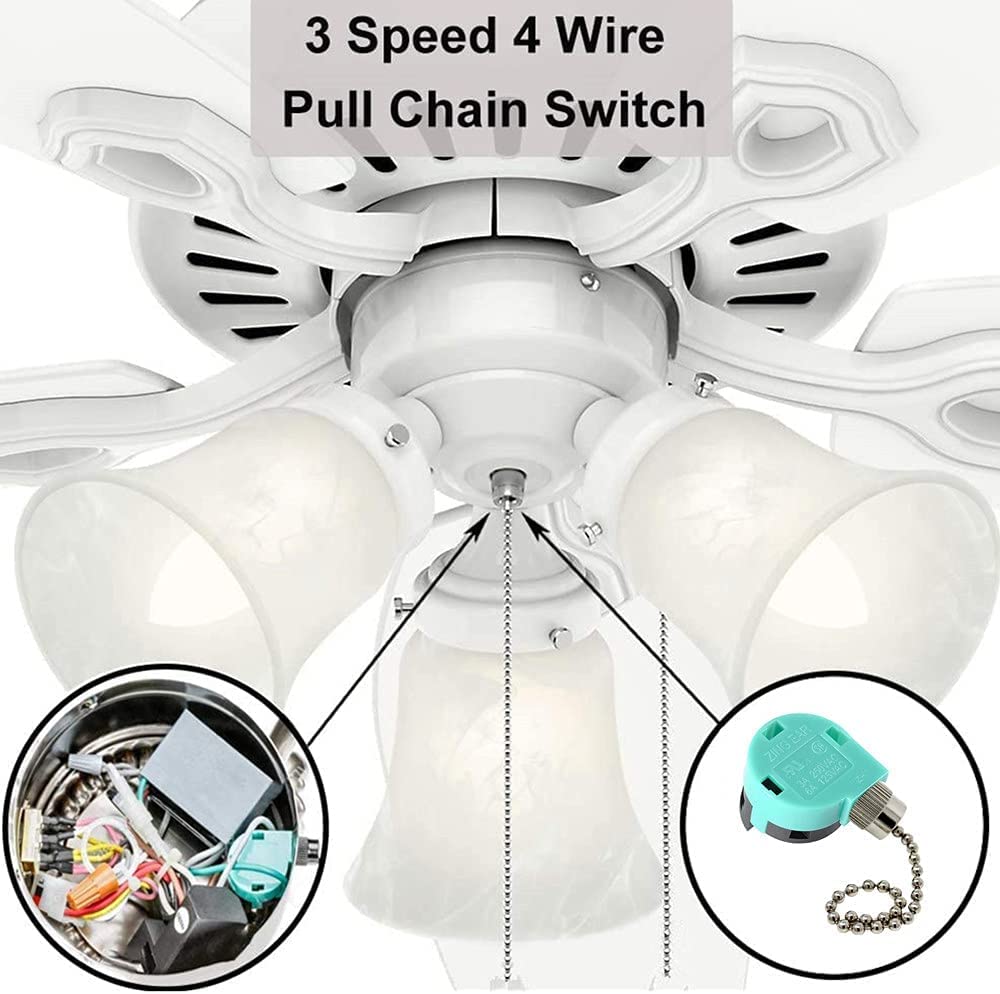

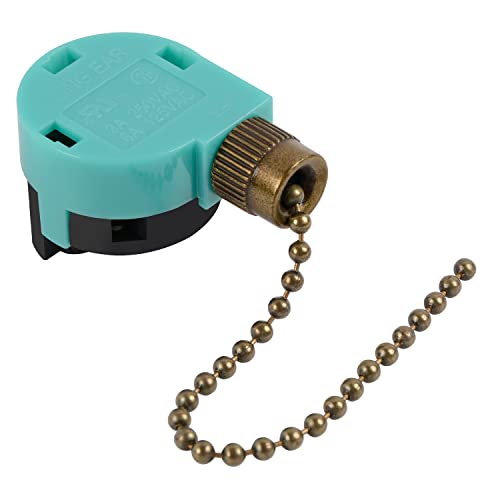

Zing Ear ZE-268S6 Ceiling Fan Light Switch Wiring Instructions Notes: Before rewiring any ceiling fan. Turn off electrical current at source by turning off circuit breakersFailure to disconnect power to the ceiling fan may cause electrical shock, fire hazard, serious injury, or deathDo not cut wires, multi-strand wires are solid and soldered together so they can be attached to the switch Steps: Write down the color of each wire and the portal number to which they are attached on the switch.Remove wires from existing fan switch. If wires are hard to remove, insert a paper clip or a large sewing needle into each hole (numbered 1, 2, 3, L) and pull the wire out (repeat this step for each wire)Make sure that the wire lead length is the same length as the line beside word “STRIP”Insert wires into the new switch as in the previous switch (see step 1). Wires should be inserted into the slots on side of the switch not the holes on surface. Ceiling Fan Switch 3 speed control: High, Medium, LowZE-268S6 4 Wire : OFF,L-1,L-2-3,L-3Ceiling Fan Switch Type: Pull chain switch Thickness: 2 centimeters Operating voltage: 125-250 V Overload current: 6 A Rotation angle: 360 degreesElectrical Rating: 6A/125VAC - 3A/250VAC Color Codes For Ceiling Fans (Your Fan Wires Color & Position May Vary) Harbor Breeze ceiling fan: L=Black, 2=Brown, 1=Gray, 3=Purple OR L=Black, 2=Gray, 1=Brown, 3=PurpleHampton Bay ceiling fan: L=Black, 2=Brown, 1=Purple, 3=Gray OR L=Black, 2=Brown, 1=Gray, 3=PurpleHampton Bay ceiling fan – Alternate colors: L=Black, 2=Purple, 1=Red, 3=YellowHunter ceiling fan: L=Black, 2=Brown, 1=Gray, 3=GreenMonte Carlo ceiling fan: L=Back, 2=Brown, 1=White, 3=Purple Switch Wiring Based on Capacitor Connection (Your Capacitor configuration May Vary) The capacitor may have 4-5 wires with 2 or 3 μF readings such as CBB61, or 3 wires (different in color). The capacitor usually has 2 wires on one end: 2 blacks, 2 grays, or 2 yellows. One of these wires is connected to terminal “1” on the switch L= Black2= Larger/higher reading from the capacitor1= Common from the capacitor3= Smaller/lower reading from the capacitor Zing Ear ZE-268S6 (3-speed fan switch) can be used to replace ZE-268S5 and ZE-208S5-1T (4-speed fan switch); however, the ceiling fan will no longer support 4 speeds as ZE-268S6 supports 3 speeds only. Note: On ZE-268S5 or ZE-208S5-1T, begin from terminal number “L” and go around counterclockwise Perfect for home applications such as Ceiling Fans, Wall Lamps, Cabinet Light. Works in Hunter, Casablanca, Harbor Breeze, Hampton Bay and so on. Used for Ceiling Fan Lights Used for Ceiling Fans Used for Wall Lamps Used for Table Lamps 2PCS Ceiling Fan Lighting Acrylic Dolphin Pull Chain Extension Bulb & Fan Shape Ceiling Fan Pull Chain Set Bulb & Fan Shape Ceiling Fan Pull Chain Kit Ceiling Fan Pull Chain Bulb & Fan Shape Ceiling Fan Pull Chain Set Buying Options Buying Options Add to Cart Buying Options Buying Options Customer Reviews 4.8 out of 5 stars 14 4.6 out of 5 stars 58 4.8 out of 5 stars 84 4.8 out of 5 stars 14 4.6 out of 5 stars 103 Price — no data — no data $6.99$6.99 — no data — no data Copper Made Beaded Ball Chain ✓ ✓ ✓ ✓ ✓ Used with ZE-268S6 Switch ✓ ✓ ✓ ✓ ✓ Length of the Chain 12 Inches 12 Inches 12 Inches 12 Inches 12 Inches
